PLC Based High Speed Servo Type Reel to Sheet Cutter
Corrugation Machines
- Vertical Type Single Phase Paper Corrugating Machine
- Double Profile Paper Corrugation Machine
- Fingerless Type Single Face Paper Corrugation Machine
- Flexo Board Printer (Double Colour)
- Flexo Board Printer (Single Colour)
- Heavy Duty Oblique Type
- Sheet Pasting Machine
- Sheet Pressing Machine
- 4 Bar Rotary & Creasing Machine
Paper Cutting Machines
- PC Series High-Speed Fully Automatic Hydraulic Clamping Heavy-Duty Paper Cutting Machine
- EH Plus-Series High Speed Fully Automatic Hydraulic Clamping Programmable Paper Cutting Machine
- EH-Series High Speed Automatic Hydraulic Clamping Paper Cutting Machine
- SA-Series High Speed 3-Motor Semi-Automatic Paper Cutting Machine
Let’s Work Together
How it works
Description
Indian Machinery NC Servo Sheet cutter is at heart of paper and packaging industry as well as 2 ply corrugated line and is an essential technology to own for any paper and corrugation manufacturer.
It comes with a top speed of 70M/min and is used for high precision cutting.
Over decades of research and deployment we have built ourselves as the most trusted brand in Servo Driven NC Sheet cutter and stacker.

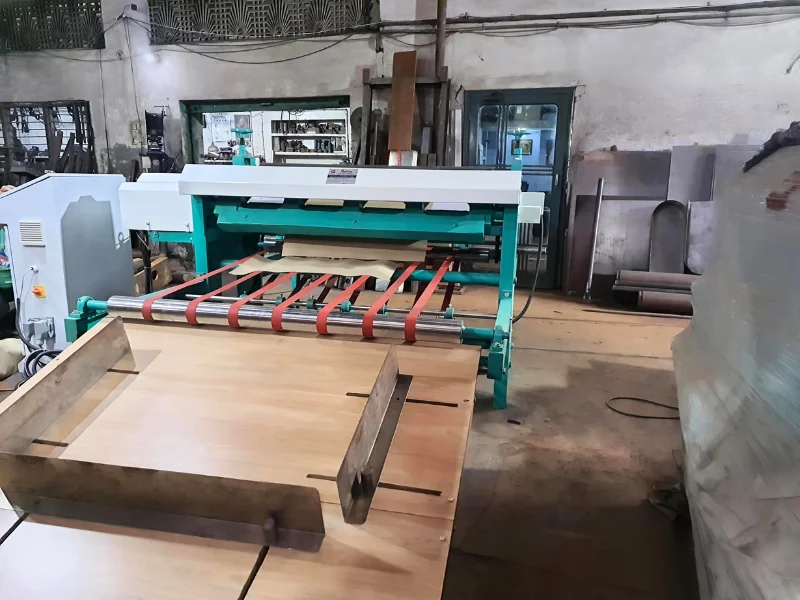

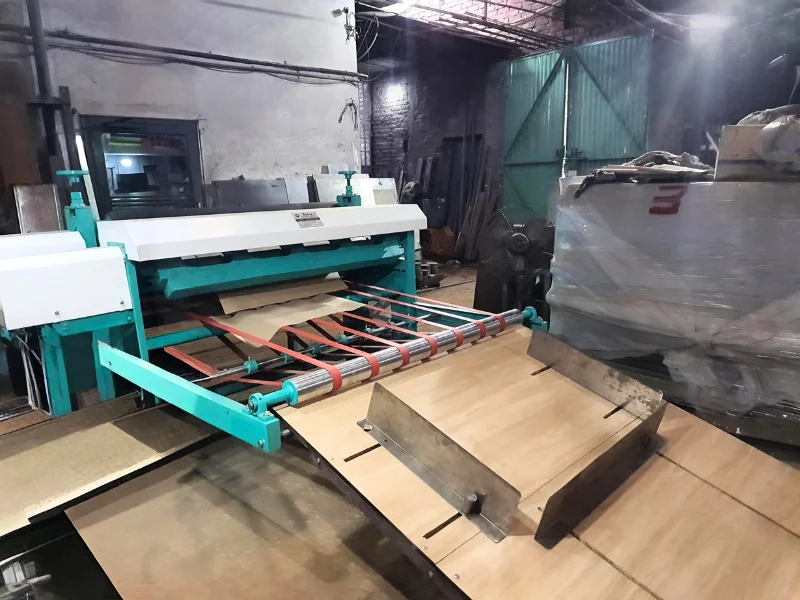

High speed NC Cutter is an efficient machine to cut 2 layer corrugated board and paper with absolute precision and speed.
A stacker can also be attached to the machine to make the line seamless and automated.

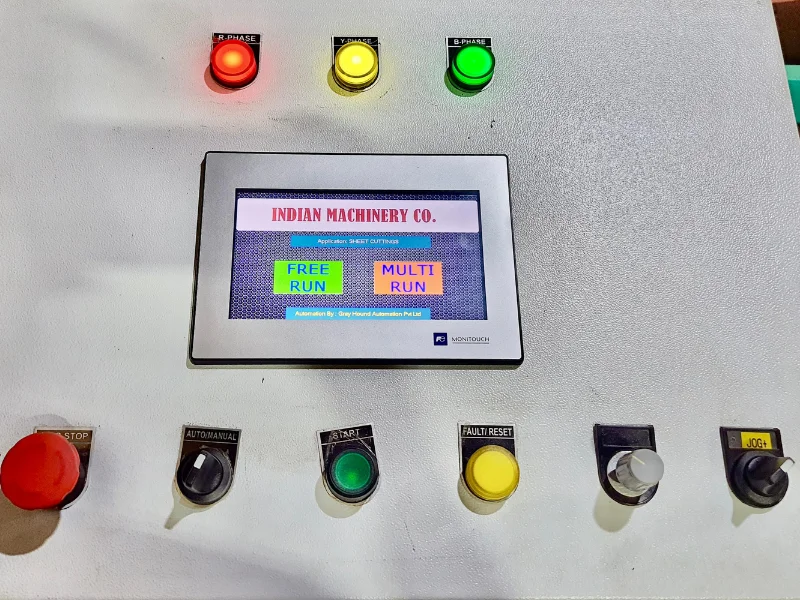

This machine can be used as independent cutter as well as 2 layer line cutter with setting controlled through highly responsive and user friendly digital touch screen.
| Item Description | Qty. |
| Colorful Touch Screen HMI For Function Operating | 1 |
| Servo Motor + Servo Drive + Cables + Connectors | 1 |
| AC Drives | 1 |
| Complete Panel Box for Servo System | 1 |
| AC Gear Motors | 1 |
| Servo Gearbox | 1 |
| Manual Loading Paper Reel Stand | 1 |
| Technical Specification | |
| Specifications | Measurements |
| Machine Size (Width) | 45/55/65/75 Inch |
| Cutting Precision (Length) | 2mm± |
| Cutting Precision (Squareness) | 1mm± |
| Maximum Cutting Speed | 50Mtr/Min |
| Maximum Cutting Range Max to Min | 10 to 150 Inch |
| Maximum Cutting Width | 42/52/62/72 Inch |
| Machine Dimension (L X W X H) | 9 X 8 X 5 Feet |
| Power (KW) | 3Kw |
| Blade Material | HCHCR D3 |
| Electrical Components | |
| Item | Brand |
| Servo motor & drive | Schneider Make 1.5Kw |
| AC Drive | Schneider Make 1.5Kw |
| HMI | Schneider Make 7Inch |
| Servo Gearbox | Taiwan Brand |
| AC Motor | Havells Make |
| Servo Coupling | Italy Make |
| Encoder | USA Brand |
Automatic stacker:
- The Max. Speed of collection paper:70m/min
- The Max. Length of collection paper :1400mm
- This machine can be collected at the same time at most 4 pieces of paper
- The machine can realize count automatically, automatic stacking, automatic stamping
- Stacker hight:100mm
- The machine have special leading edge Aligning institution
- The automatic stacking machine cost is low. Small footprint, save man power ,Is the best choice of medium-speed fitting machine.
- Floor area : 3.5*1.9m
