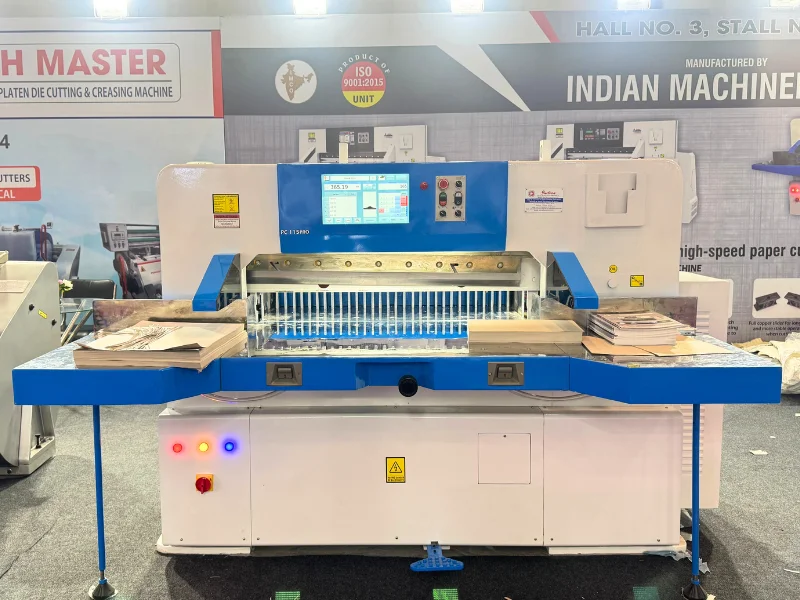

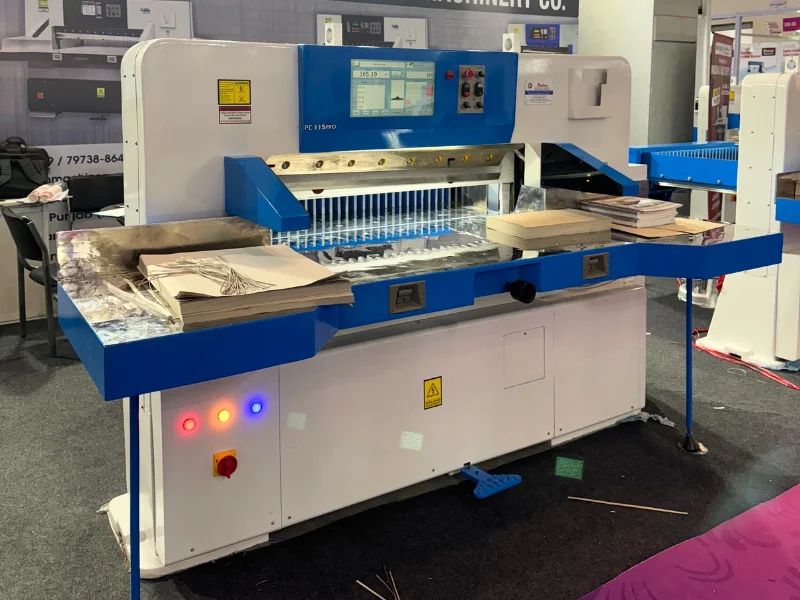

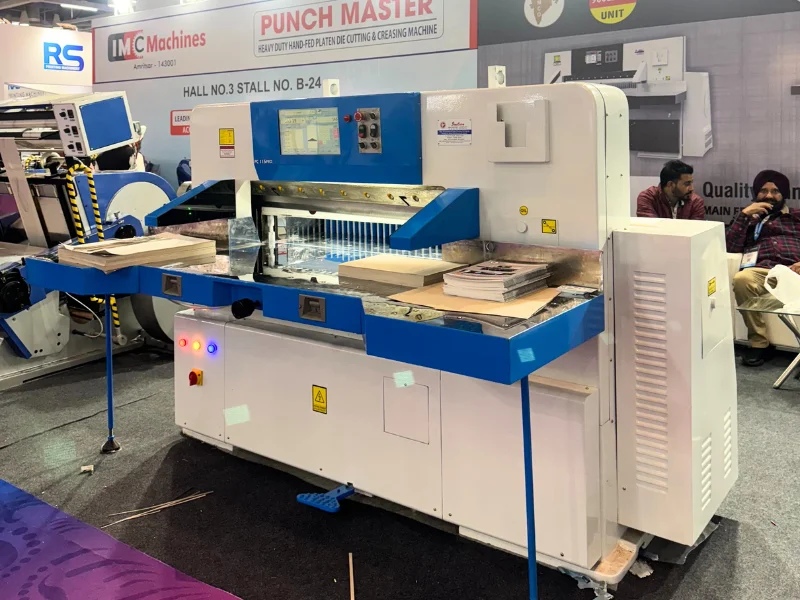

Technical Specifications Regarding iMCO-CUT PC Series
Safety features for machine & operator
- Lockable Main Switch
- 16 beam infra red safety sensors on each side between cutting zone
- Emergency stop switch
- Double push button operation keeps both hands busy while cutting
- Both push buttons should be kept pressed until cutting cycle is completed
- Machine self-diagnosis
- Safety bolt as standard accessory
- All electrical components CE certified
Quality features
- New Interface with capacitive high-resolution TFT LCD color touch screen (screen size 10”, 13”, 15.5” 19”) for easiest operation and optimized overview
- Double enclosed cast-iron machine frame gives high-speed cutters the necessary stability
- Slot less cutting table with anti- corroding stainless steel surfaces ensures perfect handling of all substrates
- Air cushion for cutting and sides tables (Ball valves) are optimized for a perfect gliding of the substrates
- Wear resistant back gauge guidance with help of LM rail guides under cutting bed on both sides
- Optimally dimensioned clamp with laterally arranged press cylinder for optimal press pressure distribution
- Robust and low maintenance mechanical knife drive (Reduction gear box) for high cutting forces
- Temperature insensitive electromagnetically clutch with flywheel for high energy- efficiency of the main drive
- Optimized cutting line for reference of cut position mark
Knives, cutting sticks & accessories
2Pcs. ATLAS super-cut grade knives, (HSS- HIGH SPEED STEEL & TCT- TUNGSTEN CARBIDE TIPPED KNIVES ON REQUEST)
5pcs. Cutting sticks
Machine installation & maintenance tool kit
Maintenance manual, troubleshooting manual, spare parts & consumable list
Technical Specifications
| Cutting width Cm/inch | 83/33″ | 92/36″ | 115/45″ | 137/54″ |
|---|---|---|---|---|
| Cutting height Cm/inch (optional) | N/A | N/A | 16.5/6 ½ | 16.5/6 ½ |
| Cutting length cm/inch | 83/33″ | 92/36″ | 115/45″ | 137/54″ |
| Main Motor H.P./K.W. | 5/4 | 5/4 | 5/4 | 7.5/5.5 |
| Mechanical Cutting speed | 44/Min Approx. | 44/Min Approx. | 42/Min Approx. | 40/Min Approx. |
| Smallest Cut Without False Clamp Plate | 20 | 25 | 25 | 30 |
| Voltage | 420 Volts | 420 Volts | 420 Volts | 420 Volts |
| Floor Space required | 80″ x 80″ | 85″ x 85″ | 105″ x 95″ | 115″ x 105″ |
| Total load Required H.P./K.W. | 7/5.2 | 7/5.2 | 7/5.2 | 9.5/7 |
| Smallest Cut With False Clamp Plate | 85 | 90 | 100 | 110 |
| Standard cutting height cm/inch | 11.5/4 ½ Approx. | 11.5/4 ½ Approx. | 13/5 ½ Approx. | 13/5 ½ Approx. |
| * Due To Continuous R&D Technical Data & Configuration Subject to Change without Notice | ||||
Configuration List IMCO-CUT PC Series
| NO. | NAME | BRAND, SPECIFICATION | ORIGIN OF BRAND |
|---|---|---|---|
| 1. | LCD TOUCH SCREEN | FUJI OR WINSTAR | JAPAN/TAIWAN |
| 2. | BACK GAUGE POSITION MOTOR | FUJI OR PANASONIC | JAPAN |

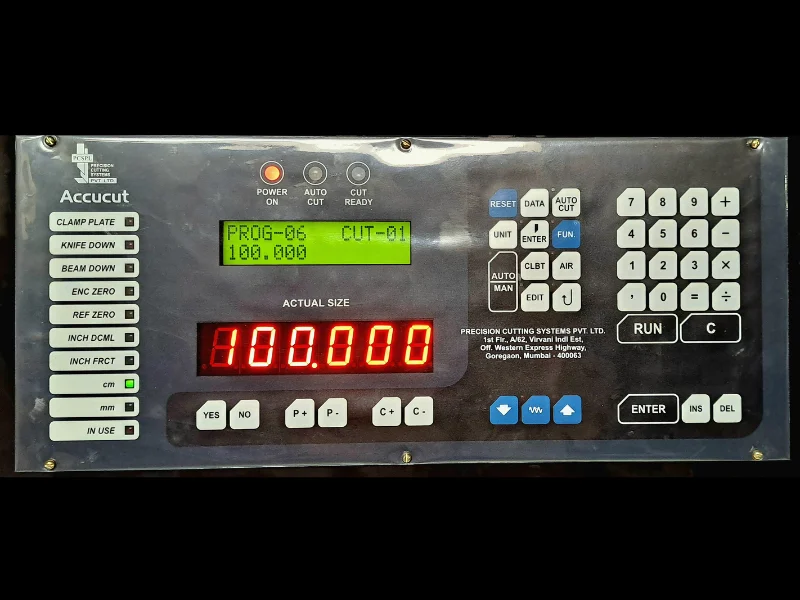

| 3. | BUTTON OPERATED PROGRAMMER UNIT | PATWARDHAN, ACCUCUT MODEL | INDIA |
| 4. | SAFETY SENSORS | AUTONICS | KOREA |
| 5. | LIMIT SWITCH | HONEYWELL | AMERICA |
| 6. | MAIN MOTOR ON/OFF SWITCH | ABB | GERMANY |
| 7. | AIR MOTOR ON/OFF SWITCH | ABB | GERMANY |
| 8. | AC CONTACTOR | SIEMENS | GERMANY |
| 9. | MINIATURE RELAY | SCHNEIDER | FRANCE |
| 10. | POWER SUPPLY/SMPS | OMRON | JAPAN |
| 11. | ROTARY ON/OFF SWITCH | SALZER | INDIA |
| 12. | CUTTING SWITCH | IMPORTED | CHINA |
| 13. | BALL SCREW & NUT | HIWIN | TAIWAN |
| 14. | DOUBLE LINEAR MOTION RAIL GUIDE | HIWIN | TAIWAN |
| 15. | HYDRAULIC VALVE | YUKEN | JAPAN |
| 16. | OIL PUMP | YUKEN | JAPAN |
| 17. | BEARINGS | NSK & SKF | JAPAN/INDIA |
| 18. | CUTTING BED | SLOTLESS & STAINLESS STEEL LAMINATED GRADE 304 | INDIA |
| 19. | CUTTING KNIFE/BLADE | ATLAS, MATERIAL IMPORTED FROM EUROPE | INDIA |
Looking through the machine

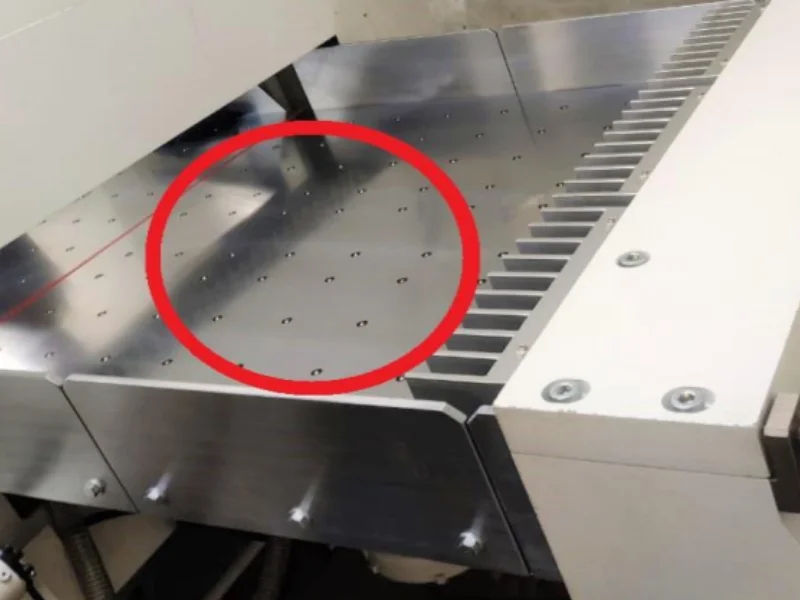

Slot less Cutting Table/Cutting Bed, No Belt System

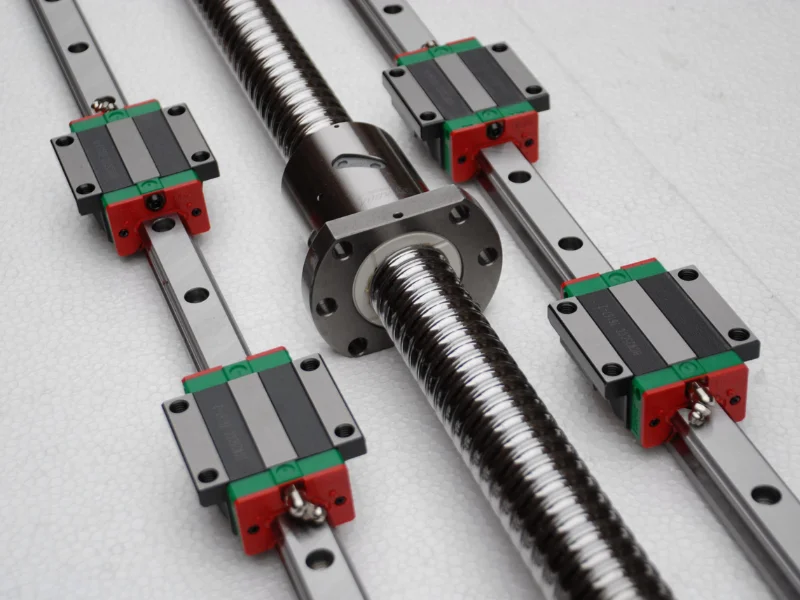

Double Linear Motion Rail Guide, Double Block with Ball Bearing Screw & Nut

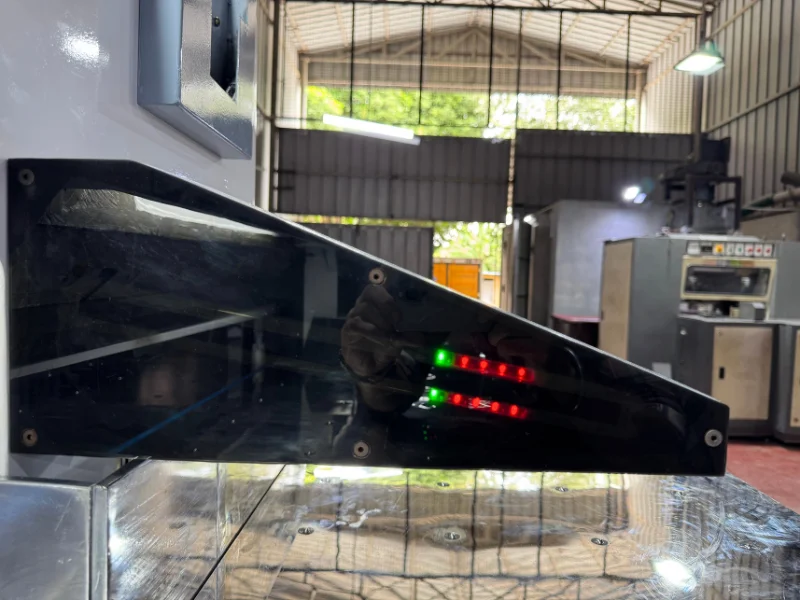

16 Beam Safety Sensors on Each Side Total 32 Safety Sensors in Machine

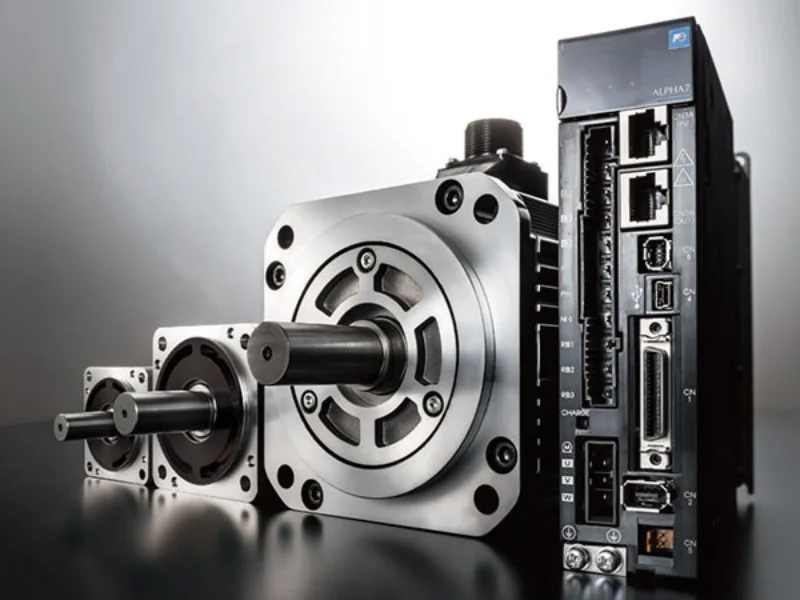

Precision Servo Motor with Servo Drive for Back-Gauge Position Control

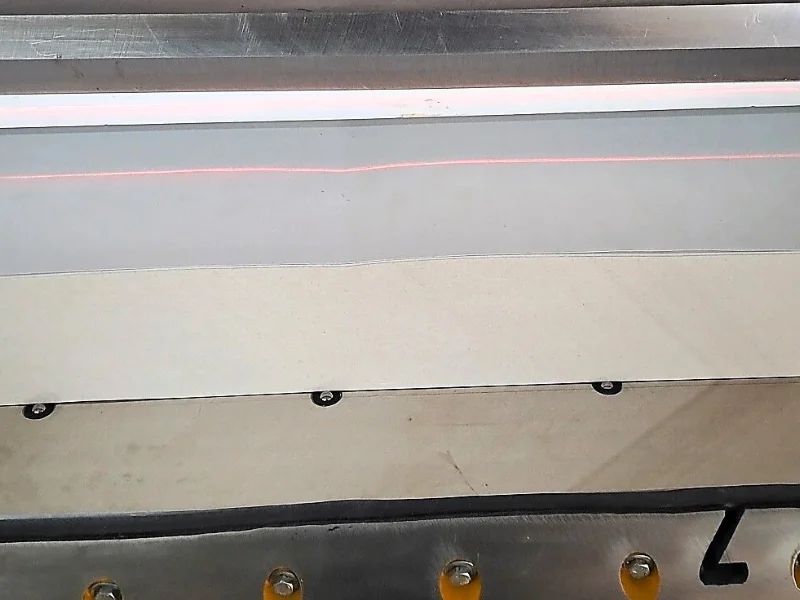

Red Color Laser Light on Paper Bundle

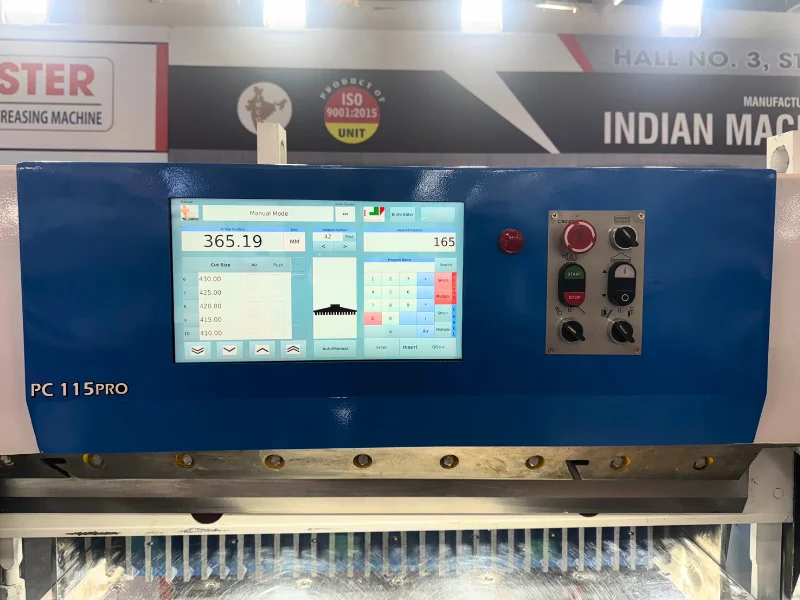

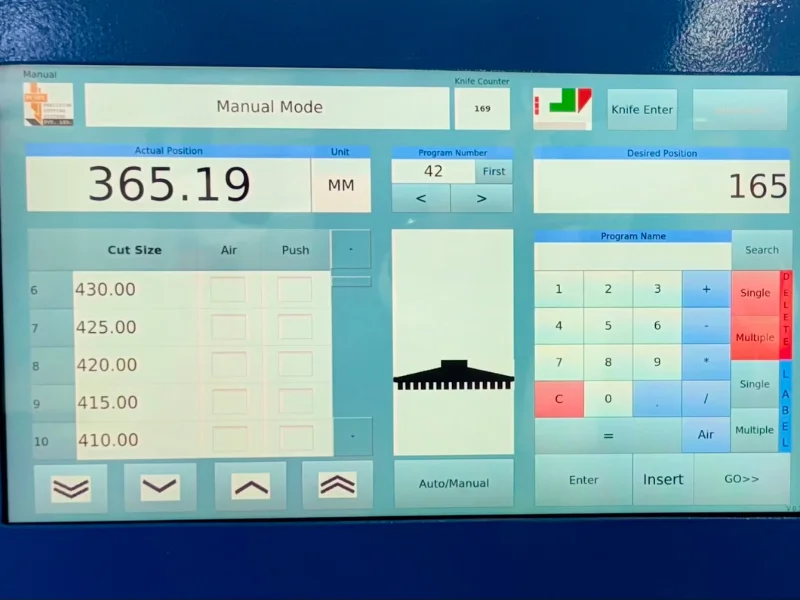

TFT LCD Touch Screen Display Programmer Unit for Size Feeding
ALL ELECTRICAL & ELECTRONIC PARTS USED IN MACHINE ARE CE CERTIFIED COMPANIES LIKE SIEMENS, FUJI, SCHNEIDER, OMRON, ABB, AUTONICS & HONEYWELL
