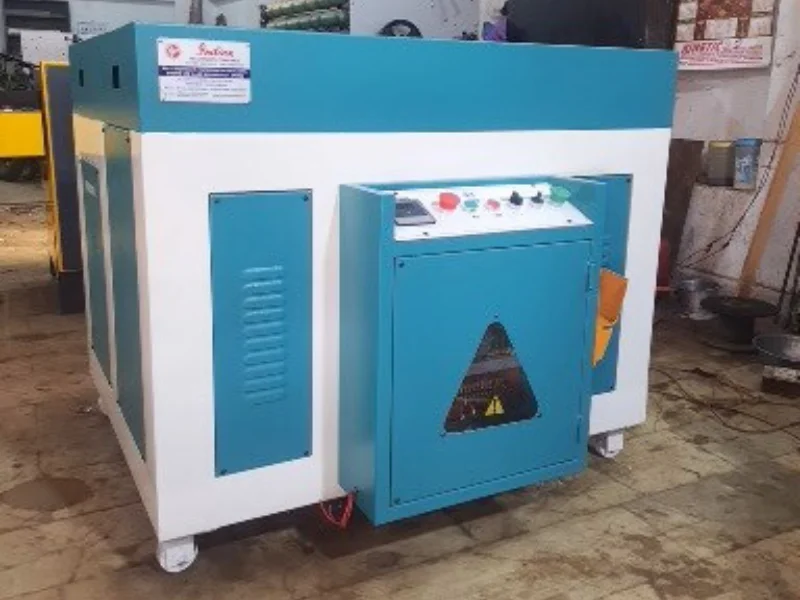

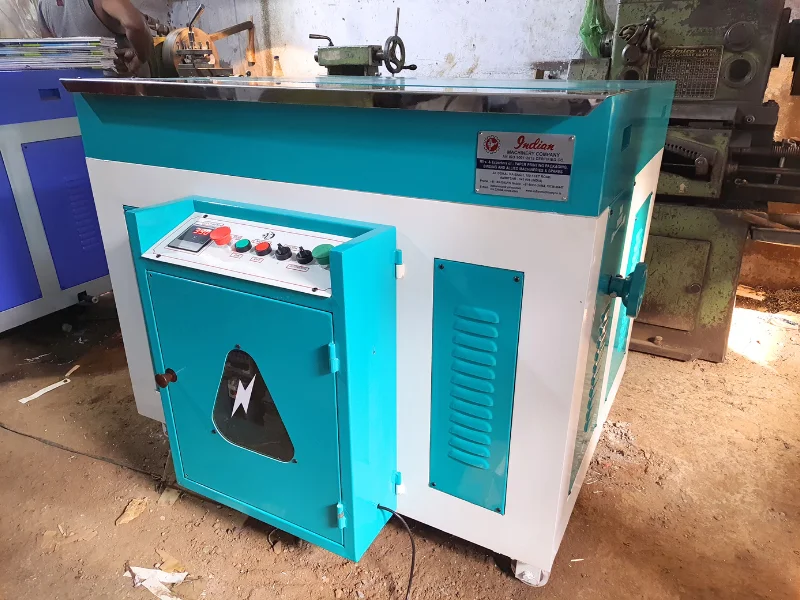

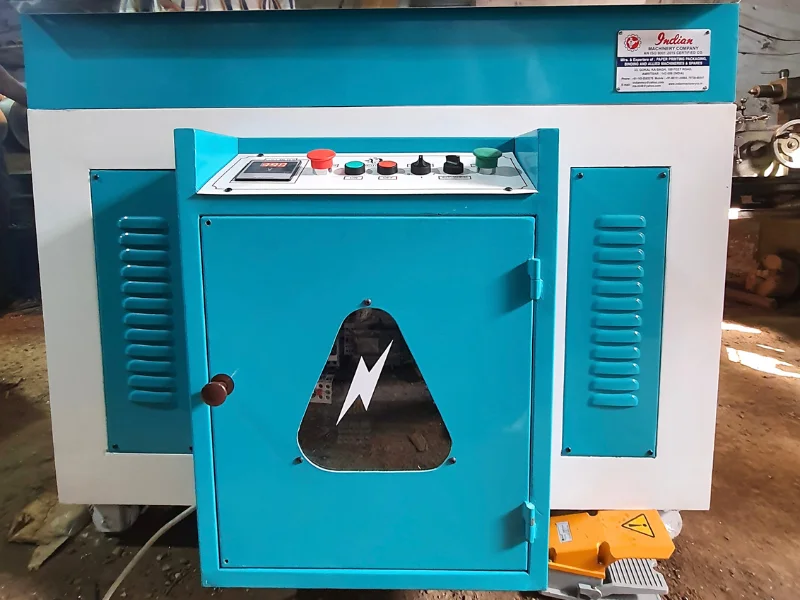

Heavy-Duty Hydraulic Notebook Edge Squaring Machine
Corrugation Machines
- Vertical Type Single Phase Paper Corrugating Machine
- Double Profile Paper Corrugation Machine
- Fingerless Type Single Face Paper Corrugation Machine
- Flexo Board Printer (Double Colour)
- Flexo Board Printer (Single Colour)
- Heavy Duty Oblique Type
- Sheet Pasting Machine
- Sheet Pressing Machine
- 4 Bar Rotary & Creasing Machine
Paper Cutting Machines
- PC Series High-Speed Fully Automatic Hydraulic Clamping Heavy-Duty Paper Cutting Machine
- EH Plus-Series High Speed Fully Automatic Hydraulic Clamping Programmable Paper Cutting Machine
- EH-Series High Speed Automatic Hydraulic Clamping Paper Cutting Machine
- SA-Series High Speed 3-Motor Semi-Automatic Paper Cutting Machine
Let’s Work Together
Looking for high-quality machinery? We’re here to help! Connect with us for inquiries, orders or expert guidance.
+91-7973492809
sales.indianmachinery@gmail.com

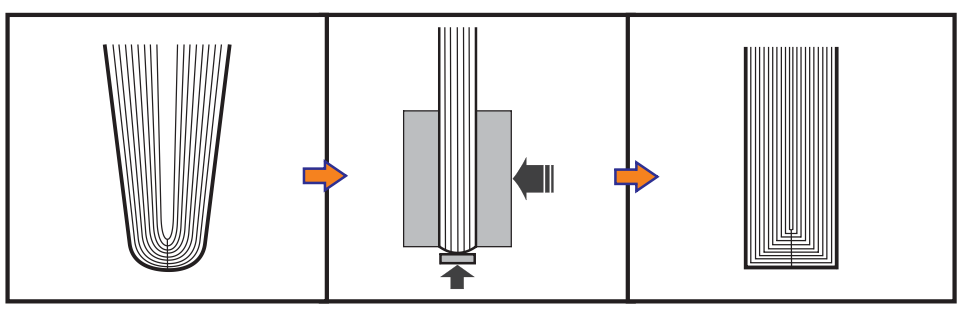

How it works
Description & Features
Square shape of spine similar to Perfect Bound Books.
Hydraulic Press forms a permanent square shape of the spine for aesthetic and functional value addition at 900 cycles per hour for single copy.
Material and 1 to 9 copies (maximum opening up to 100mm) are inserted in the machine.
The end- paper sticks perfectly to the spine and is rubbed with the help of Steel Rollers to form a perfect square-shape and ensures covering material adheres to the spine. Thereby maintaining the right-angle of the spine
Sizes Available- 85, 95, 105cm
(AVAILABLE IN BOTH SINGLE AND THREE PHASE POWER SUPPLY)
Technical Specifications
| Book Block Width (max) | 1030mm | 710mm | 810mm | 910mm |
| Spine Thickness (min-max) | 5-70mm | 5-60mm | 5-60mm | 5-60mm |
| System Clamping Pressure (kgs) | 8500 | 6000 | 7000 | 7500 |
| Squaring Pressure (kgs) | 3500 | 2500 | 3000 | 3000 |
| Electrical Load Motor (kva/hp) | 2.25/3 | 1.5/2 | 2.25/3 | 225/3 |
| Hydraulic Oil Capacity (ltrs) | 100 | 60 | 70 | 80 |
| Nett Weight Approx (kgs) | 1200 | 700 | 850 | 950 |
| Overall Dimensions (W*L*H) | 40″*56″*42″ | 40″*42″*41″ | 40″*46″*41″ | 40″*49″*41″ |
